High Quality Centrifugal Drilling Bucket with Open Body

Application: For the foundation drilling industry, especially in the drilling of soil, clay, mudstone, sandstone, etc. Great choice for capturing gravel, cobbles and clay that is not super adhesive.


Product Detail

Product Tags

Features

- Kelly box size optional (130×130/150×150/200×200mm, etc.).
- Clay teeth V19, V20, 25T or rock teeth optional.
- Bucket thickness:16mm or 20mm as per request.
- The single bottom plate thickness: 50mm.
- The double bottom plate thickness: 40/50mm.
- The drilling diameter up to 5000mm.
- Match up with most rotary drilling rigs in the market, including Bauer, IMT, Soilmec, Casagrande, Mait, XCMG, and so on.

More Introduction

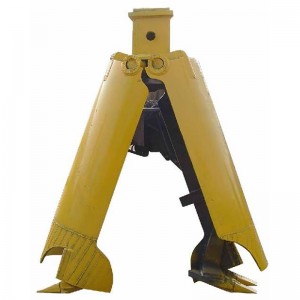

Centrifugal drilling bucket features in a complete hinged body. It remains closed and performs cutting and digging when rotating clockwise; it swings upon to evacuate the spoils when removed from the bored hole and rotated clockwise.
- Large inlet of soil, open-shell design easy to dump spoil, and increase the drilling efficiency.
- Super strength structure for the shell, guide plate to increase the service life of the bucket.
- Guide strips arranged on the surface of the bucket to avoid drilling tools sucked by the pressure.

Specification of Centrifugal Bucket with Open Body

Drilling diameter (OD)

Cutting diameter

Shell length

(Bucket height)

Shell thickness



Teeth type

Weight

(mm)

(mm)

(mm)

(mm)

\

(Kg)

600

560

1200

25/30







Optional

950

700

660

1200

25/30

1120

800

760

1200

25/30

1280

900

860

1200

25/30

1450

1000

960

1200

25/30

1600

1100

1060

1200

30

1850

1200

1160

1200

30

2080

1300

1260

1200

30

2450

1400

1360

1200

30

2700

1500

1460

1200

30

2950

Note: The above sizes are for reference only, for any larger or smaller OD as per request.

Optional Rock Teeth

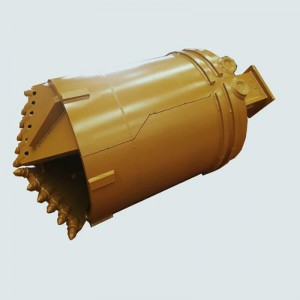

The centrifugal bucket with rock teeth

The centrifugal bucket in action drilling loose cobbles and gravel.

The centrifugal bucket in action drilling loose cobbles and gravel.

Optional Clay Teeth

The centrifugal bucket with clay teeth
