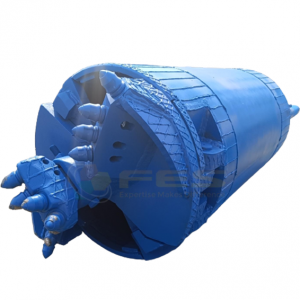

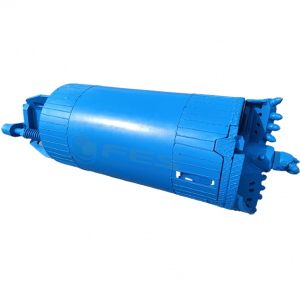

Straight Rock Drilling Bucket or Soil Drilling Bucket

Application: For the foundation drilling industry


Product Detail

Product Tags

Product Detail Presentation

1001

Features

-High-quality double bottom double cut straight drilling bucket/ single bottom double cut soil bucket/ double bottom single cut cleanup bucket, etc. available.
-Rock bucket, soil bucket, cleanup bucket, etc.
-Drilling diameter from 350 mm up to 3500mm.
-Kelly box optional (130×130/ 150×150/200×200mm, etc.)
-Match up with most rotary drilling rigs in the market, including Bauer, IMT, Soilmec, Casagrande, Mait, XCMG, and so on.
-Round shank chisel pilot bit RP4 (Fishtail pilot ad Flat teeth optional).
-Ventilation pipe.
-Wear protection: hard facing or wear strips.
-Manual or auto open optional.
-Customization available upon specific requirement.

Specification of Drilling Bucket

OD



Tool box

Height

Height

Bucket height

Top plate thickness

Shell Thickness

Base plate thickness

Cutting plate thickness

Teeth type

Weight

D(mm)

D1(mm)



NL(mm)

GL(mm)

H(mm)

δ1(mm)

δ2(mm)

δ3(mm)

δ4(mm)



Kg

600

560

Optional

1815

2355

1500

25

20

40

50

B47K-22H

950

700

660

1815

2355

1500

25

20

40

50

1140

800

760

1815

2355

1500

25

20

40

50

1350

900

860

1855

2395

1500

25

20

40

50

1580

1000

960

1855

2395

1500

25

20

40

50

1780

1100

1060

1895

2435

1500

25

20

40

50

2000

1200

1160

1895

2435

1500

25

20

40

50

2230

1300

1260

1895

2435

1500

25

20

40

50

2420

1400

1360

1895

2435

1500

25

20

40

50

2670

1500

1460

1895

2435

1500

25

20

40

50

2930

1600

1560

1895

2435

1500

25

20

40

50

3210

1700

1660

1895

2435

1500

25

20

40

50

3570

1800

1760

1895

2435

1500

25

20

50

50

4000

Note: The above size for reference only, for any smaller or larger OD as per request.

Large Diameter Drilling Bucket

large diameter bucket
